GE Fanuc OPC Server
Overview

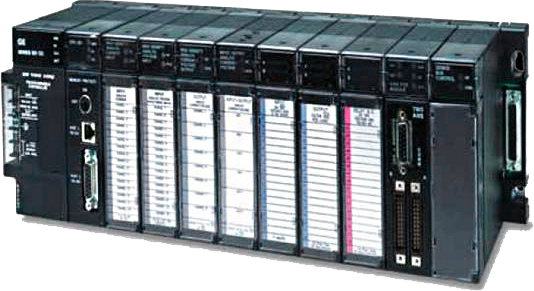

GE SNP Server 320 is a software package developed by OPCTechs Technology Corp. for GE Micro, Ge9030 and GE 9070 series of PLC in serial communication. It is totally based on OPC 3.0 standards, and is suitable for the software integration domain. SNP is the protocol presented by GE Corp. OPCTechs OPC server could connect with part series of the GE PLC in serial communication.
Serial Communication Protocol
◎ GE SNP-X Protocol
◎ GE SNP Protocol
Case Study
◎ Case Study1 : Case for Water Corporations
Supported Devices
| Model Name | CPU | Serial |
|---|---|---|
| MICRO-PLC | IC200UAA003 |  |
| IC200UAR014 | |
|
| IC200UDD104 | |
|
| IC200UDD112 | |
|
| IC200UDR001 | |
|
| IC200UDR002 | |
|
| IC200UDR003 | |
|
| IC200UAL004 | |
|
| IC200UAL005 | |
|
| IC200UAL006 | |
|
| IC200UAR0028 | |
|
| IC200UDD110 | |
|
| IC200UDD120 | |
|
| IC200UDR005 | |
|
| IC200UDR006 | |
|
| IC200UDR010 | |
|
| IC200UDD212 | |
|
| IC200UEX009 | |
|
| IC200UEX010 | |
|
| IC200UEX011 | |
|
| IC200UEX012 | |
|
| IC200UEX013 | |
|
| IC200UEX014 | |
|
| IC200UEX015 | |
|
| IC200UEX122 | |
|
| IC200UEX209 | |
|
| IC200UEX210 | |
|
| IC200UEX211 | |
|
| IC200UEX212 | |
|
| IC200UEX213 | |
|
| IC200UEX214 | |
|
| IC200UEX215 | |
|
| IC200UEX222 | |
|
| IC200UEX616 | |
|
| IC200UEX626 | |
|
| IC200UEX636 | |
|
| IC200UEX010 | |
|
| 90-30 | CPU-311 | |
| CPU-313 | |
|
| CPU-323 | |
|
| CPU-331 | |
|
| CPU-340 | |
|
| CPU-341 | |
|
| CPU-350 | |
|
| CPU-351 | |
|
| CPU-352 | |
|
| CPU-360 | |
|
| CPU-363 | |
|
| CPU-364 | |
|
| CPU-374 | |
|
| 90-70 | CPU-731 | |
| CPU-732 | |
|
| CPU-772 | |
|
| CPU-780 | |
|
| CPU-782 | |
|
| CPU-788 | |
|
| CPU-789 | |
|
| CPU-790 | |
|
| CPU-915 | |
|
| CPU-925 | |
|
| CPU-928 | |
|
| CPU-935 | |
|
| VersaMax | CPU-001 | |
| CPU-002 | |
|
| CPU-005 | |
|
| CPU-E05 | |
|
| RX7i-CPE010 | |
|
| RX7i-CPE020 | |
|
| RX7i-CPE030 | |
Features
Key features of the OPC Server 320 include:
◎ Tag values are persistent.
◎ Tags have configurable alarm conditions.
◎ Flexible configuration for numerous tags.
◎ Tags support configurable range information.
◎ Value simulation for any data item in the OPC server.
◎ Tags can be grouped in logical folders for manageability.
◎ Tag multiplier allows you to create hundreds of tags in seconds.
◎ OPC Data Access Server、Alarm & Event Server are integrated in one program.
◎ Compliant with the latest OPC XML Data Access 1.0 standard.
◎ Compliant with the latest OPC Alarm and Events 1.0 and 1.2 standards.
◎ Compliant with the latest OPC Data Access 1.0, 2.04, 2.05 and 3.0 standards.
| Required Hardware & Software | Item | Specification |
|---|---|---|
| IBM Compatible Computer | CPU | Intel® Pentium® 4or higher |
| Memory | 2 GB RAM at least | |
| HDD space | 10 GB disk space | |
| Operating System | Windows 7 Professional 32/64-bit | |
| Windows 8 Professional 32/64-bit | ||
| Windows 10 Professional 32/64-bit | ||
| Windows 2003 Server 32/64-bit | With Service Pack 1 | |
| Windows 2008 Server 32/64-bit | With Service Pack 1 | |
| Windows 2012 Server 32/64-bit | With Service Pack 1 | |
| Windows 2016 server 32/64-bit |
Windows CE
| Required Hardware & Software | Item | Specification |
|---|---|---|
| Windows CE | CPU | ARM, XScale, X86 CPU |
| Operating System | Windows CE | Windows CE 5.0, 6.0 |
OPC Compliance
Compliance Testing is a process which verifies that an OPC product implements a specification properly by using a standard software test tool developed by the OPC Foundation. This test tool, called the Compliance Test Tool or CTT, is currently available for several specifications. Vendors can download the CTT from the OPC Foundation website and run the tests at their site. The company’s administrator or designated product manager for the OPC Foundation WEB site can then attach the encrypted file generated by the CTT to the appropriate OPC Foundation Product catalog item. The OPC Foundation Product Catalog will display the results to the public. OPC Users should look for OPC Server products that have passed the compliance tests for all specifications that the product supports and display the “Self Tested” logo.Compliance Testing is only available for OPC Server products.
Certification Testing
| Link Name | Version | Compliance Tool | Date Tested | Test Result |
|---|---|---|---|---|
| OPCTechs.GESNP30DA | 3.20.0 | DA 2.05a (2.0.17.1146) | 2007-11-14 | Tested |
| OPCTechs.GESNP30DA | 3.20.0 | DA 3.00 (1.0.13.1146) | 2007-11-14 | Tested |
Integration Different Kinds of PLC
Project Introduction:
Generally, MIS department exists in well-established company to collect instrument operating data to analyze the data and give report, also, of course to write PC program. Data collection is always an annoying trouble for most MIS engineers because all the programs are designed with different programming languages. Now, with the help of OPC Server, all the problems mentioned above can be solved easily rising the efficiency. OPCTechs Technology Corp. provides OPC Server for most popular PLC. Programs written by different programming languages could also communicate through Data Exchange OPC Server.
System Requirement:

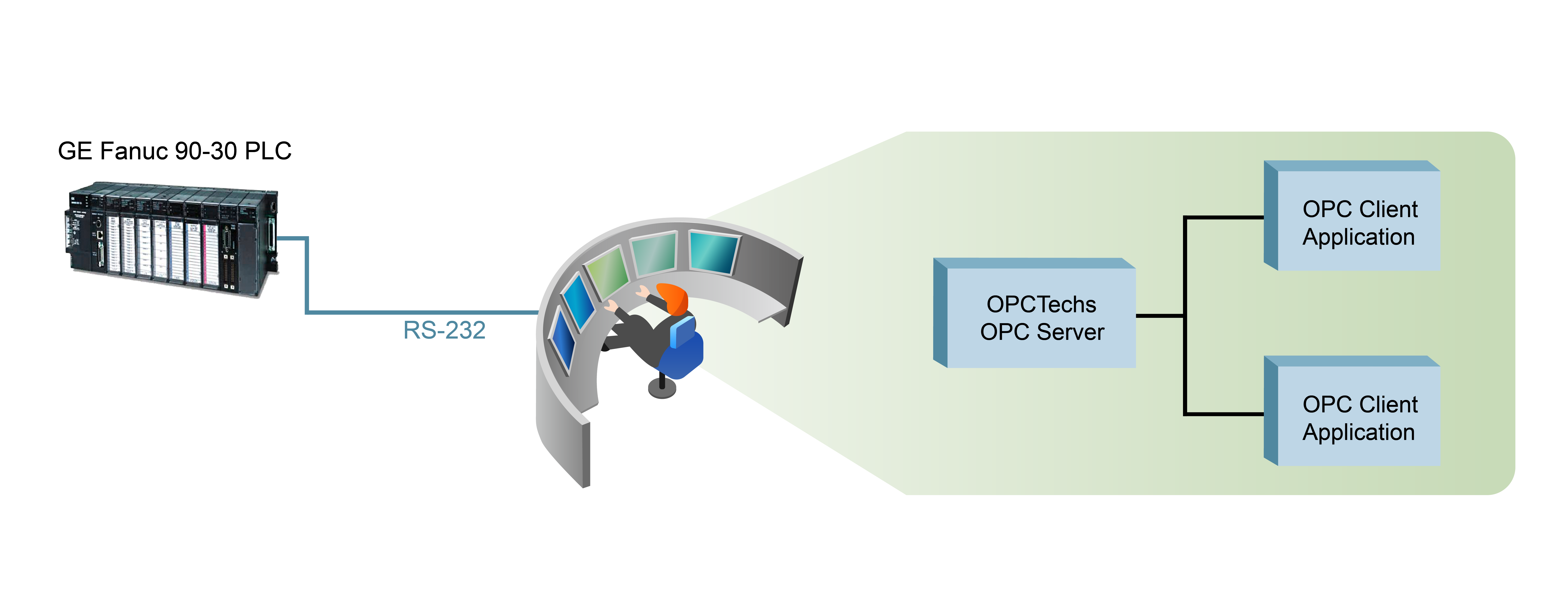

System Diagram:
Conclusions:
OPCTechs OPC Server support part of popular devices, such as all series of Melsec PLC, Omron PLC and AB PLC. Moreover, we also provide well organized structure of OPC Server and Client, so all the monitoring program and self-developed program could be integrated with each other easily. Time for developing Driver program could be saved.
