OPC to ModbusTCP/serial Slave

Bridge Your OPC Servers with Modbus Networks Seamlessly.

OPCTechs Software Package
KEY CAPABILITIES

Software Specification

Designed for robust bidirectional data exchange between OPC servers and Modbus environments.

Server Support

Support maximum 10 OPC servers running simultaneously to ensure wide device connectivity.

Modbus Data Types

AO includes INT, UINT, DINT, UDINT, FLOAT data types.
DO only supports BOOL.

Bidirectional Synchronization

Supports OPC and ModbusTCP Read/Write. When an OPC write value changes in ModbusTCP, the ModbusTCP write value will update in the OPC.

High Tag Capacity

The maximum Modbus DO/AO tags are supported up to 32,767 for each data type.

Dual Protocol Support

Provides complete support for both Modbus TCP and Modbus RTU slave protocols.

SYSTEM ARCHITECTURE

Network Structure

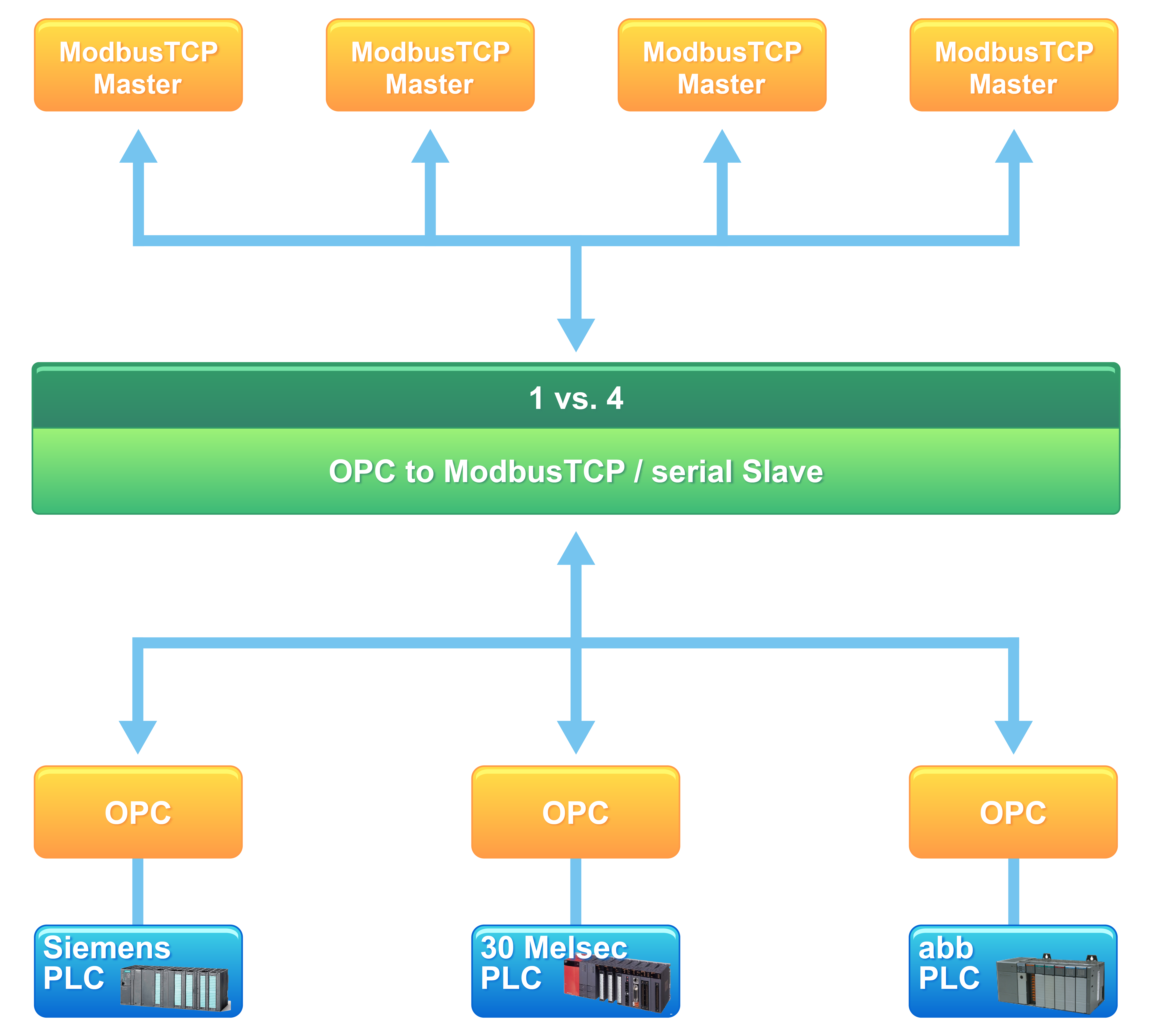

System Structure of OPC to ModbusTCP/serial Slave
REQUIREMENTS

System Requirement

Ensure your hardware and operating system meet the baseline prerequisites for optimal performance.

System Item Hardware and Software Details
CPU Intel Sandy Bridge Core i3
Memory 4GB DDR3 1333
Operation System XP Pro SP3, Win7, Win8, Win10 / Windows Server 2008R2, 2012, 2016 (32/64 bit)
