GE SRTP Ethernet OPC Server




Overview

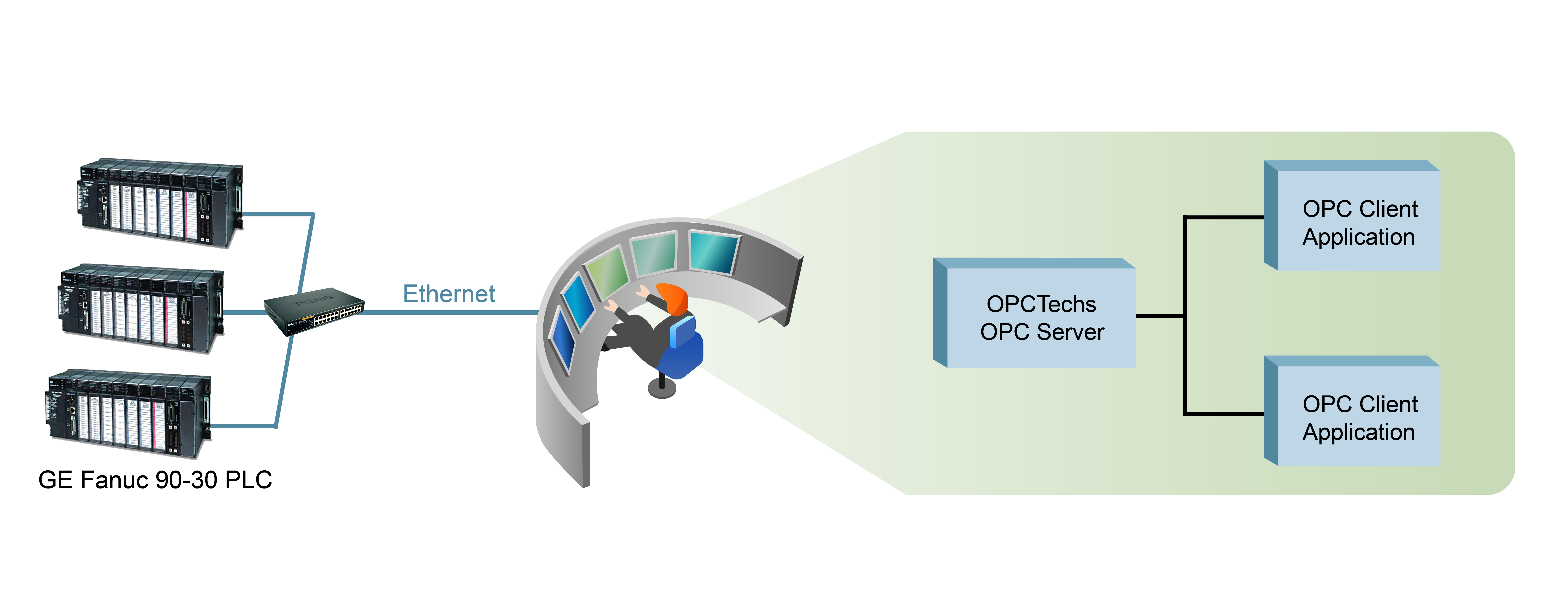

GE SRTP Ethernet OPC Server 320 is a software package developed by OPCTechs Technology Corp. for the GE Micro, GE9030 and GE 9070 series of PLC. It is totally based on OPC 3.0 standards, and is suitable for the software integration domain. is the protocol presented by GE Corp. OPCTechs OPC server could connect with part series of the GE PLC with Ethernet module.

Ethernet Communication Protocol

◎ GE SRTP Protocol


Case Study

◎ Case Study1 : Case for Power Plant



Supported Devices

Model Name CPU Serial
MICRO-PLC IC200UAA003
IC200UAR014
IC200UDD104
IC200UDD112
IC200UDR001
IC200UDR002
IC200UDR003
IC200UAL004
IC200UAL005
IC200UAL006
IC200UAR0028
IC200UDD110
IC200UDD120
IC200UDR005
IC200UDR006
IC200UDR010
IC200UDD212
IC200UEX009
IC200UEX010
IC200UEX011
IC200UEX012
IC200UEX013
IC200UEX014
IC200UEX015
IC200UEX122
IC200UEX209
IC200UEX210
IC200UEX211
IC200UEX212
IC200UEX213
IC200UEX214
IC200UEX215
IC200UEX222
IC200UEX616
IC200UEX626
IC200UEX636
IC200UEX010
90-30 CPU-311
CPU-313
CPU-323
CPU-331
CPU-340
CPU-341
CPU-350
CPU-351
CPU-352
CPU-360
CPU-363
CPU-364
CPU-374
90-70 CPU-731
CPU-732
CPU-772
CPU-780
CPU-782
CPU-788
CPU-789
CPU-790
CPU-915
CPU-925
CPU-928
CPU-935
VersaMax CPU-001
CPU-002
CPU-005
CPU-E05


Features

Key features of the OPC Server 320 include:

◎ Tag values are persistent.

◎ Tags have configurable alarm conditions.

◎ Flexible configuration for numerous tags.

◎ Tags support configurable range information.

◎ Value simulation for any data item in the OPC server.

◎ Tags can be grouped in logical folders for manageability.

◎ Tag multiplier allows you to create hundreds of tags in seconds.

◎ OPC Data Access Server、Alarm & Event Server are integrated in one program.

◎ Compliant with the latest OPC XML Data Access 1.0 standard.

◎ Compliant with the latest OPC Alarm and Events 1.0 and 1.2 standards.

◎ Compliant with the latest OPC Data Access 1.0, 2.04, 2.05 and 3.0 standards.



Required Hardware & Software Item Specification
IBM Compatible Computer CPU Pentium 133 or higher
Memory 256 MB RAM at least
HDD space 100 MB disk space
Operating System Windows 7 32/64 bits With Service Pack 1
Windows 8 Professional 32/64 bits
Windows 10 Professional 32/64 bits
Windows 2003 Server 32/64 bits With Service Pack 1
Windows 2008 Server 32/64 bits With Service Pack 1
Windows 2012 Server 32/64 bits With Service Pack 1
Windows 2016 server 32/64 bits


Windows CE

Required Hardware & Software Item Specification
Windows CE CPU ARM, XScale, X86 CPU
Operating System Windows CE Windows CE 5.0, 6.0


OPC Compliance

Compliance Testing is a process which verifies that an OPC product implements a specification properly by using a standard software test tool developed by the OPC Foundation. This test tool, called the Compliance Test Tool or CTT, is currently available for several specifications. Vendors can download the CTT from the OPC Foundation website and run the tests at their site. The company’s administrator or designated product manager for the OPC Foundation WEB site can then attach the encrypted file generated by the CTT to the appropriate OPC Foundation Product catalog item. The OPC Foundation Product Catalog will display the results to the public. OPC Users should look for OPC Server products that have passed the compliance tests for all specifications that the product supports and display the “Self Tested” logo.Compliance Testing is only available for OPC Server products.



Certification Testing

Link Name Version Compliance Tool Date Tested Test Result
OPCTechs.GESRTPNet30DA 3.20.0 DA 2.05a (2.0.17.1146) 2007-11-27 Tested
OPCTechs.GESRTPNet30DA 3.20.0 DA 3.00 (1.0.13.1146) 2007-11-27 Tested


Integration Different Kinds of PLC

Project Introduction:

Generally, MIS department exists in well-established company to collect instrument operating data to analyze the data and give report, also, of course to write PC program. Data collection is always an annoying trouble for most MIS engineers because all the programs are designed with different programming languages. Now, with the help of OPC Server, all the problems mentioned above can be solved easily rising the efficiency. OPCTechs Technology Corp. provides OPC Server for most popular PLC. Programs written by different programming languages could also communicate through Data Exchange OPC Server.



System Requirement:

  • VB programming language

  • VB.NET programming language

  • OPCTechs Panasonic Serial OPC Server

  • OPCTechs DataExchange OPC Server

  • OPCTechs Yokogawa Serial OPC Server
  • OPCTechs Yokogawa Ethernet OPC Server

  • OPCTechs Koyo Serial OPC Server

  • OPCTechs Fuji Serial OPC Server

  • N-Port


  • System Diagram:



    Conclusions:

    OPCTechs OPC Server support part of popular devices, such as all series of Melsec PLC, Omron PLC and AB PLC. Moreover, we also provide well organized structure of OPC Server and Client, so all the monitoring program and self-developed program could be integrated with each other easily. Time for developing Driver program could be saved.
